Thông tin chi tiết sản phẩm:
|
| Sân bóng đá: | 0,5mm | áp dụng cáp: | Cáp phẳng thích hợp 0,3mm |
|---|---|---|---|
| Loại khóa: | Khóa lại | Độ bền điện môi: | AC 500V trong 1 phút |
| Kiểu lắp: | SMT/ZIF | Nhiệt độ hoạt động: | -25oC-+85oC |

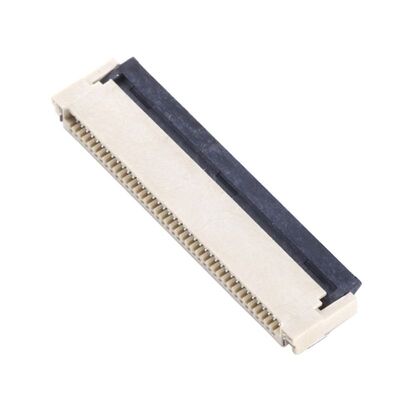

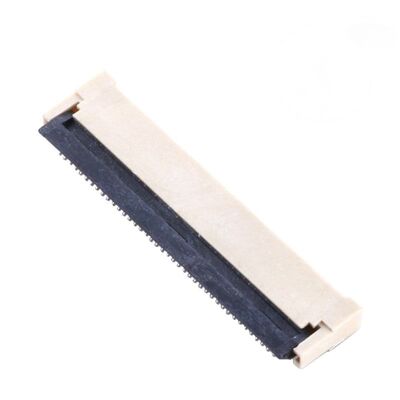

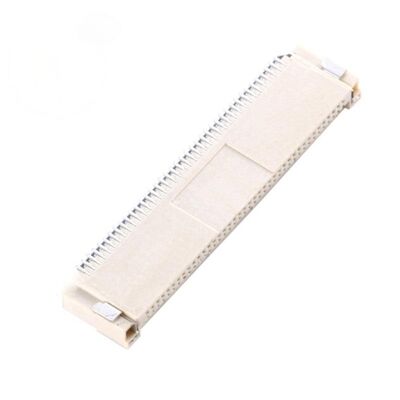

0.5mm pitch Horizontal Back flip-lock ZIF type fpc connector 0.5mm 4-60pin
Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.

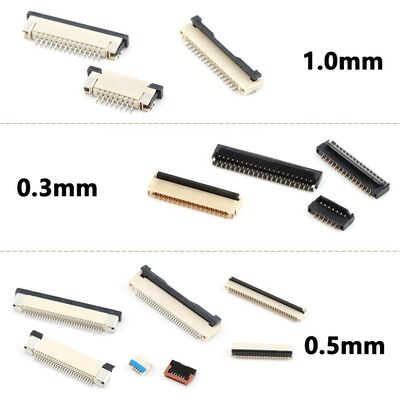

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.
Description
This Series are suitable for applications in which high contact reliability is required under harsh environments regarding vibration, temperature, humidity, etc. Applications include in-vehicle units such as car navigation system units, GPS units, and car audio products, medical or industrial equipment, and OA or AV equipment. FPCs/FFCs with tabs prevent improper mating, enable secure connection, and increase the force to retain FPCs/FFCs.
| Pitch | 0.5mm | |
| Height | 2.0mm | No. Of position: 4-96pin |
| Mounting Type | SMT/ZIF | |
| Contact Location | Single-sided contact | |
| Type | Back lock | |
| Current Rating | 0.5A/Pin Max | |
| Voltage Rating | 50V AC/DC MAX | |
| Withstanding Voltage | 250V AC,1min | |
| Cover Material | LCP UL94V-0 black | |
| Housing | LCP UL94V-0 Natural | |
| Terminal/Contact | Copper alloy | |
| Plating | Tin-plating / Gold-plating | |
| Operation Temperature | -40℃ to +85℃ | |
| Lead Time | 7-10 working Days | |
Product Application:
1, Cusumer Electronics.
2, Communications Industry.
3, Medical Equipment.
4, Automotive Filed
5, Military Industry
6, Internet of things
Payment term and delivery
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
Service
XTK Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
3. time.
4. Free Samples:3-5 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
8. kits if customers are not satisfied)
